Level 3 AC-Type EV Charger

①High integration

Level 3 AC-Type EV Charger

High integration, only the external charging gun, light board, card reading board, display screen

Home Product Solutions Electric Vehicle Solutions EV Chargers

Product solution introduction

①High integration, only the external charging gun, light board, card reading board, display screen, emergency stop button can be used;

②A variety of charging modes are optional: plug-in and charging mode, credit card charging mode, Bluetooth charging mode, APP charging mode;

③Support the reservation function, support the current switching;

④With overvoltage protection, A type leakage protection, lightning protection, grounding detection, over temperature protection, plug temperature detection, relay adhesion protection, CP abnormal protection and other safety functions;

⑤ Meet the GB / T 18487. 1-2015 standard;

⑥Support OTA remote upgrade;

Product features

High integration, only the external charging gun, light board, card reading board, display screen, emergency stop button can be used;

A variety of charging modes are optional: plug-in and charging mode, credit card charging mode, Bluetooth charging mode, APP charging mode;

Support the reservation function, support the current switching;

With overvoltage protection, A type leakage protection, lightning protection, grounding detection, over temperature protection, plug temperature detection, relay adhesion protection, CP abnormal protection and other safety functions;

Meet the GB / T 18487. 1-2015 standard;

Support OTA remote upgrade;

Application scenario

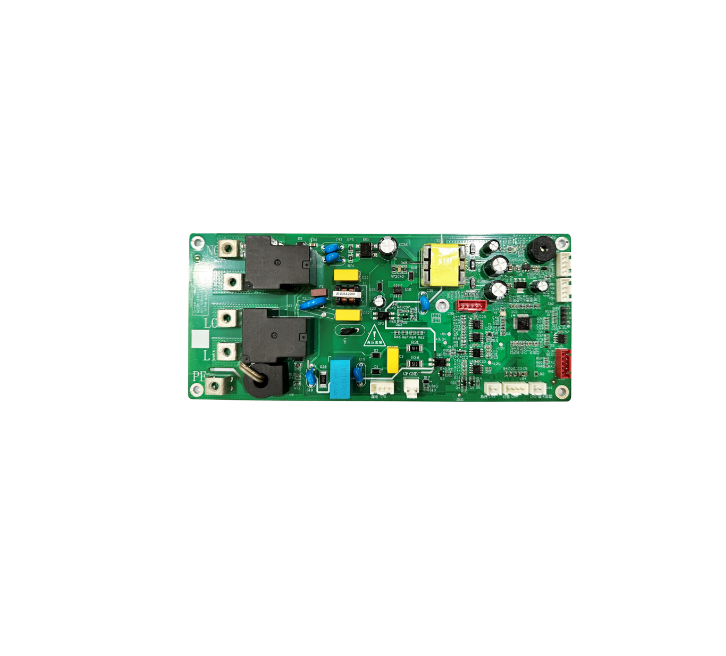

模式三7KW规划板

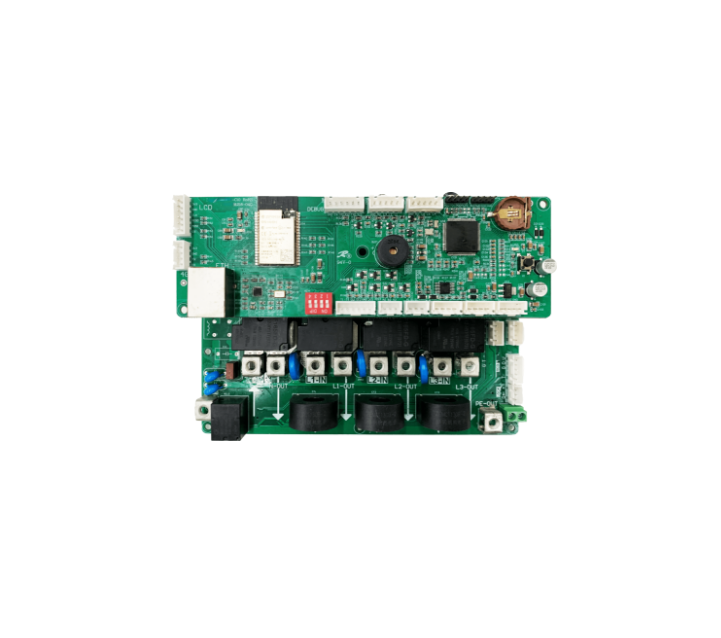

模式三22KW规划板

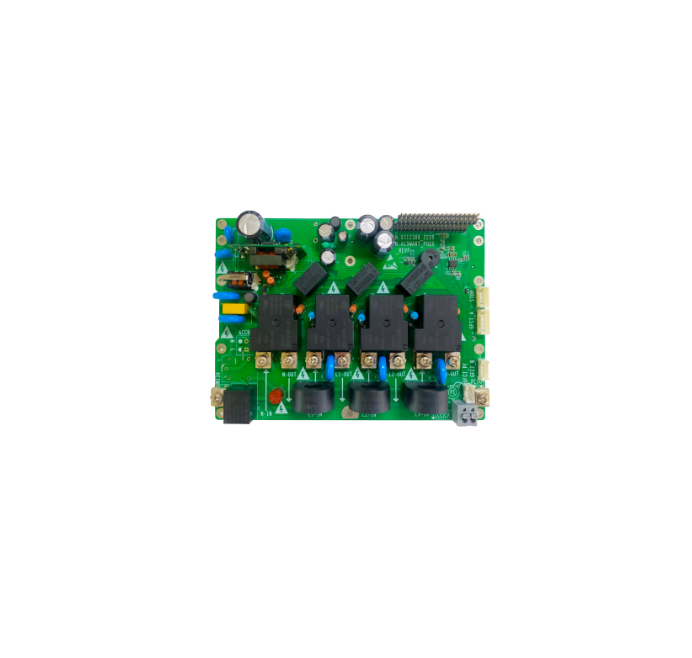

模式三11KW三相规划板

Product Parameters

输入电压领域	220Vac±20%
根基；ぶ澳	过欠压/过流；，漏电；，接地；，粘连；，防雷；
工作频率	45Hz~65Hz
工作温度	-30℃~+55℃
输入电压领域	与输入同步
显示方式	LED（标配），LCD（选配）
额定输出电流	32A
充电方式	即插即充（选配），刷卡充电（标配），蓝牙充电（选配），APP充电（选配）
额定输出功率	7KW
尺寸	180.5mm140.5mm24mm
